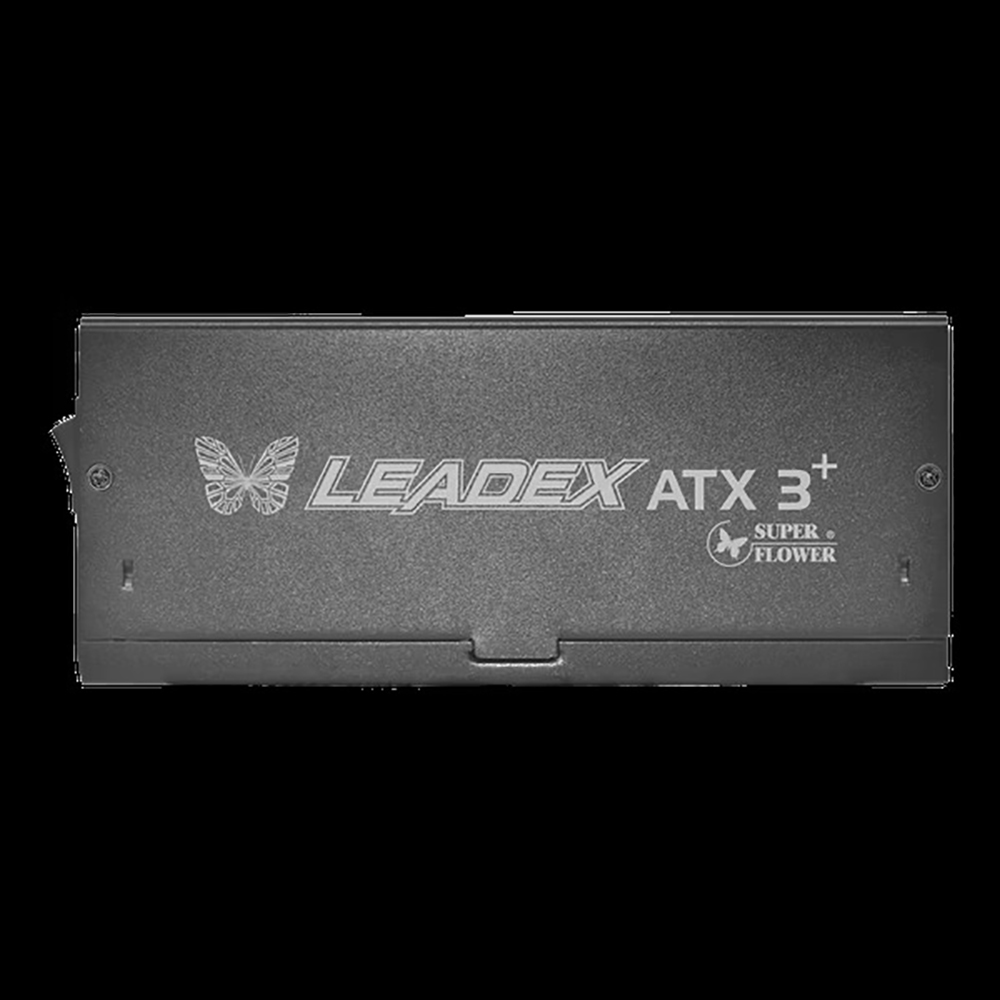

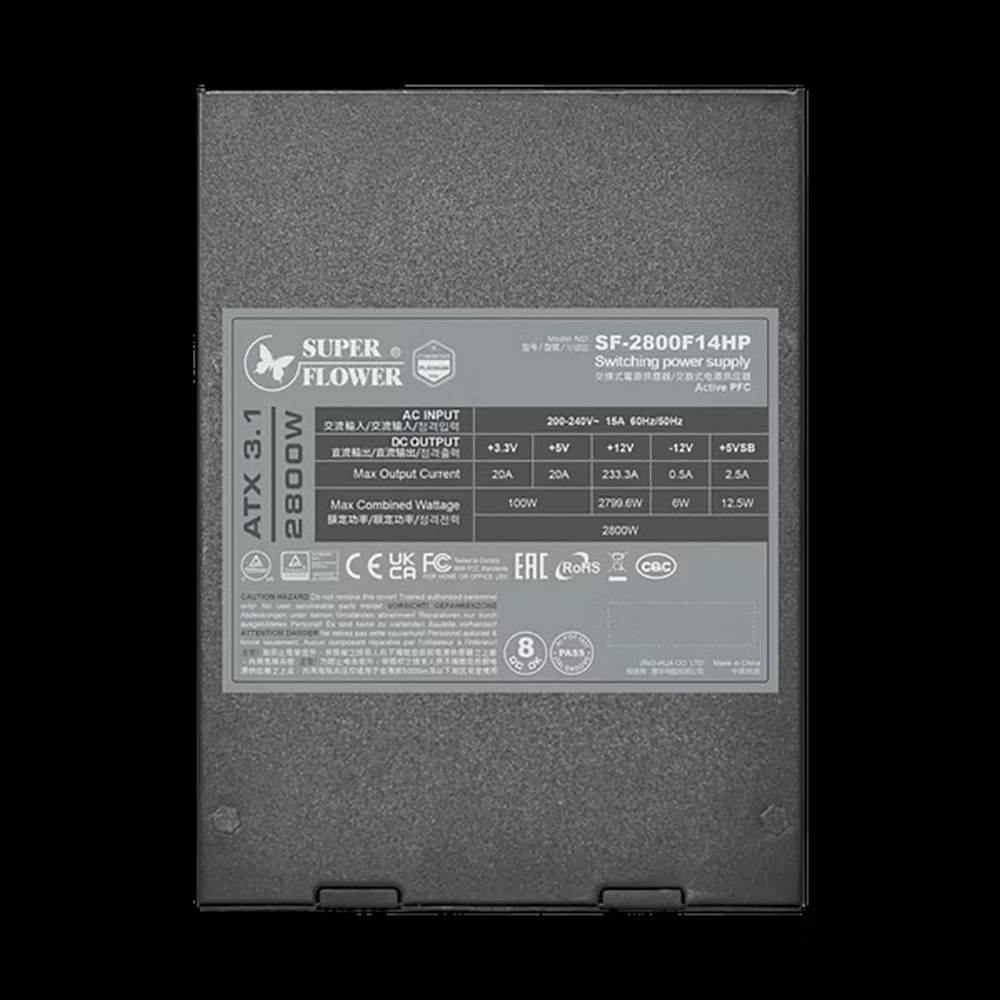

Super Flower Leadex Titanium

RM2,895.00

Short Description

LEADEX Titanium 2800W is a flagship power supply fully compliant with Intel ATX 3.1, designed for extreme performance systems. It is Cybenetics Titanium certified, ensuring ultra-high efficiency and stable power delivery.Featuring a 100% fully modular design with optimized cable management, it improves airflow and thermal performance. Equipped with HCS terminals and a native 12V-2×6 (12VHPWR) connector, it supports up to 200% power excursion, meeting the demands of next-gen GPUs while reducing cable bending stress.

A 140mm smart thermal control fan ensures efficient, quiet cooling under load. Fully compatible with NVIDIA® SLI™ and ATI CrossFireX™, and compliant with the latest IEC/EN 62368 safety standards, it also supports ALPM for enhanced energy efficiency.LEADEX Titanium 2800W is the ultimate choice for modern high-end PC builds.

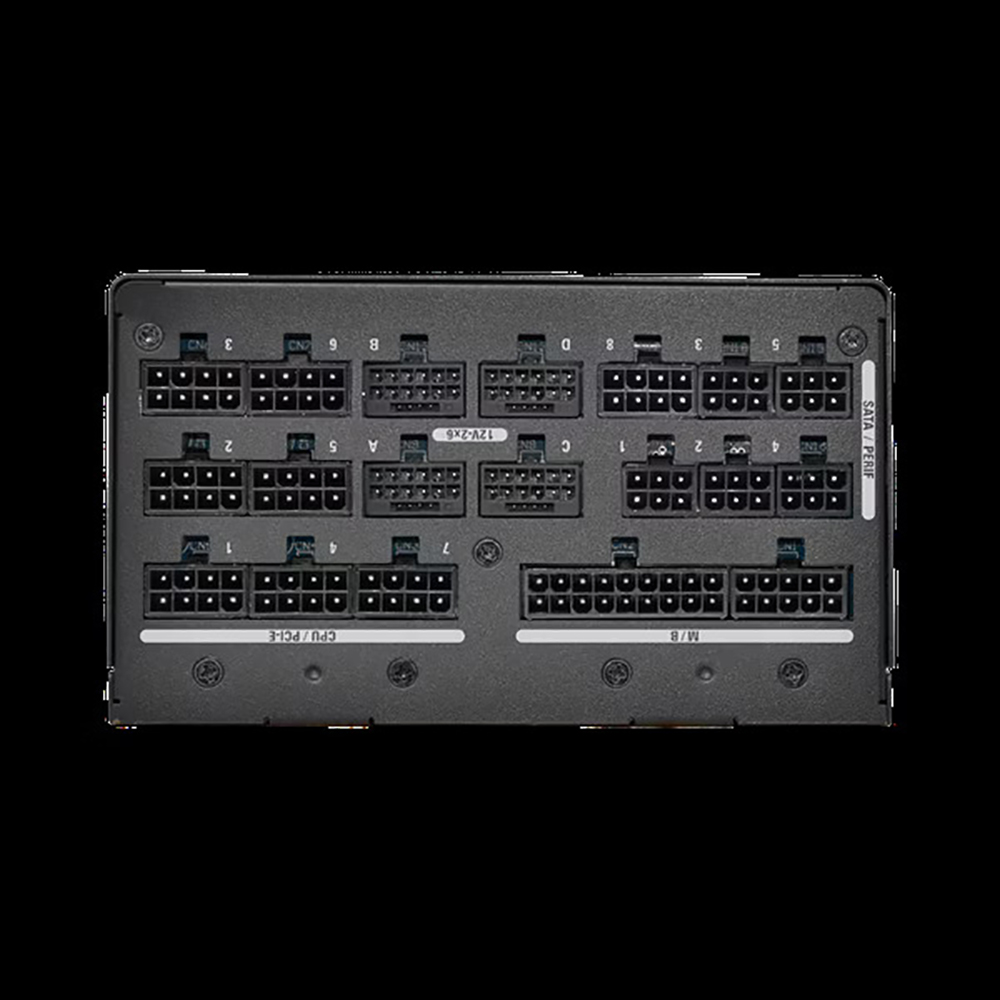

Cabling Design 100% full modular cabling design for easy cable management
Design & Protection Innovative design for gaming system & PSU protection, low output voltage ripple
Efficiency Certification Cybenetics Titanium 230V input certified (overall efficiency ≥ 93% to <95%)
Voltage Design Single voltage design 230V (Active PFC)
Standards Compliance ATX 12V v2.32, EPS 12V v2.92, ATX 3.1 specification
Energy Compliance Energy Star standard & EuP regulation
Protection Features Over Voltage Protection
Over Current Protection
Over Power Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Low Voltage Protection
No Load Operation
Surge & Inrush Protection
CPU & Motherboard Support Supports all Intel / AMD multi-core CPU & ATX / BTX compatible motherboards
GPU Support Supports up to NVIDIA 50 series & Radeon 9000 series high-performance graphics cards

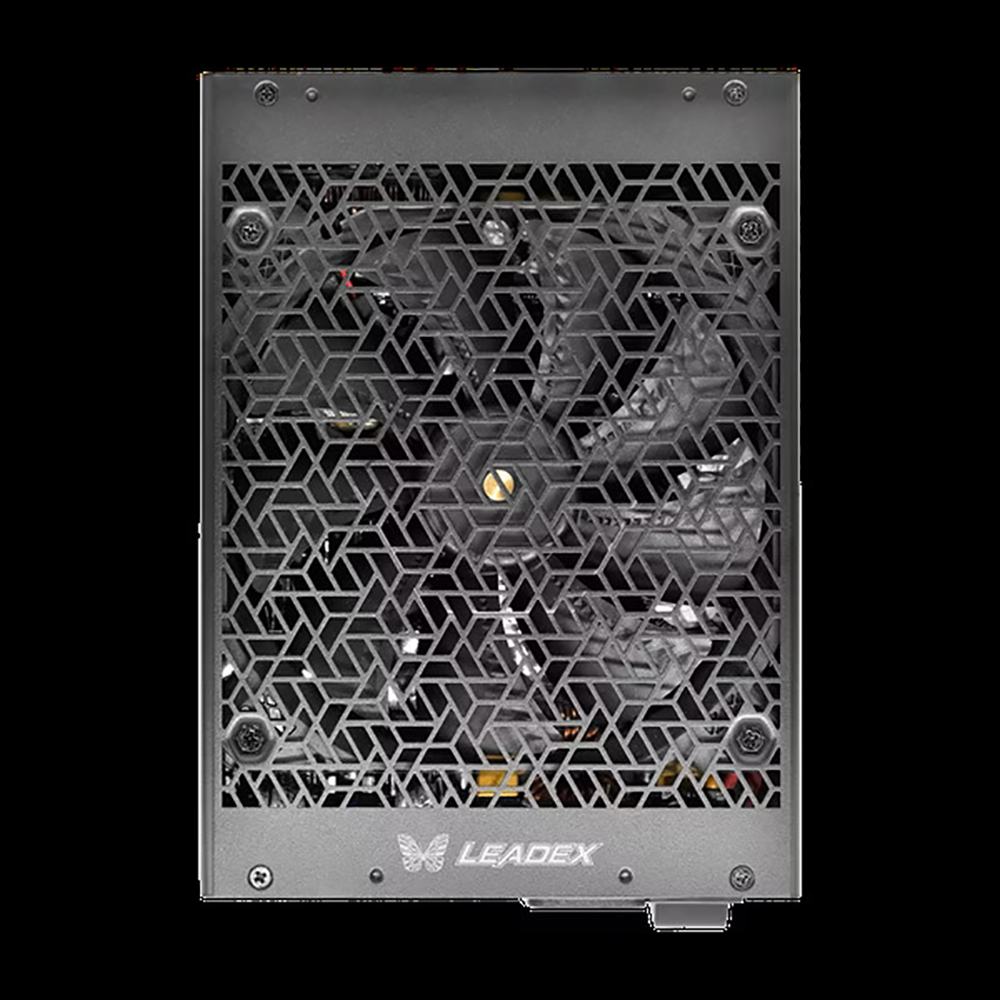

Cooling Fan First to use 3-phase 12 motor fan in PSU
Bearing Design Copper shaft around bearing for better stability, durability, heat dissipation, and longer lifespan
Reliability Test More than 2,000 times on/off test
Materials Unleaded green materials, RoHS / WEEE compliant
Use Case Professional & high-performance gaming systems
Circuit Design Bridgeless PFC & full-bridge LLC resonant circuit design
GPU Connectors 12V-2×6 & PCI-E (6+2) pin connectors for high-end graphics cards
Capacitors Complete Japanese capacitors
Patents Exclusive patents
Thermal Control System Dual voltage circuit with intelligent thermal control system
Power Stability DC output +12V / +5V / +3.3V remain stable
Improved unbalanced load performance in dynamic load testing
Patented Connector New patented (20+4) pin connector (Taiwan M563575, China 7566010)
Main Transformer Extreme high-efficiency main transformer with patent
